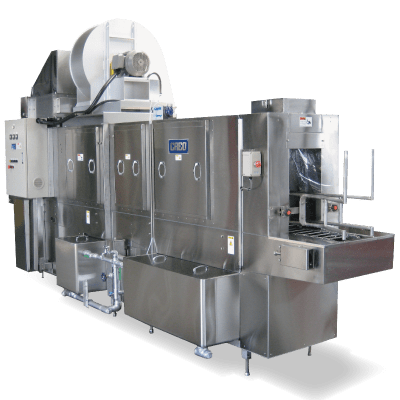

Conveyor Washer and Dryer SWD4200
Capacity: 500 units/hour

Containers are loaded in vertical stacks
Category Utility Value
Total Electrical Capacity 3-phase 200V 11.4kW
Water Volume Initial 230L, 20L/min
Steam Volume 240kg/hour (at 0.3MPa)
Displacement 35m3/min
Equipment Dimensions 4250×1335×2755 (mm)

* Steam volume varies depending on usage conditions.

* Install exhaust air treatment with 90% relative humidity or more to allow for steam production.

* Dimensions, specifications, appearance, and other aspects of the product may be changed for improvement purposes.
